EU.ROU.FIN CUTTER
Old Insert type Rough & Semi-Finish Cutter for WMW & MOULD Gear Cutting Machine
★ The WMW & MOULD Series Cutter is a dedicated cutter for tooth profile generation on WMW and Modul machines.

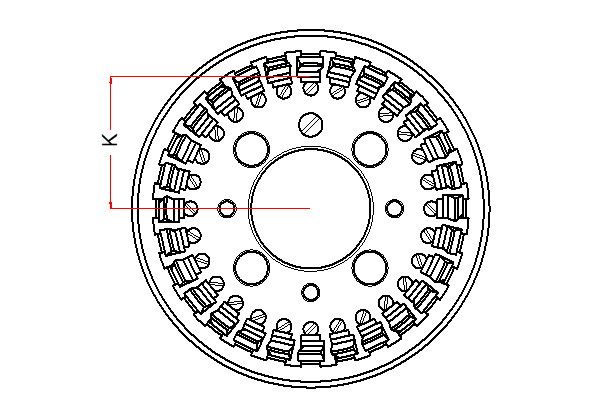

Cutter Standard
| No. | AVE.CUTTER DIAMETER |
HEAD Spec. | NUMBER of MASTER |
NUMBER of BLADES |
CUTTING DEPTH |
CLAMPING STYLE |
|
|---|---|---|---|---|---|---|---|
| Outer Dia, | High | ||||||
| 1 | 6.0" | Ø205.0㎜ | 30.0㎜ | 2 | 16 | 13.0㎜ | Four Screws |
| 2 | 7.5" | Ø250.0㎜ | 32.0㎜ | 2 | 20 | 17.0㎜ | Four Screws |
| 3 | 9.0" | Ø290.0㎜ | 32.0㎜ | 2 | 24 | 17.0㎜ | Four Screws |
| 4 | 12.0" | Ø378.0㎜ | 38.0㎜ | 2 | 28 | 21.0㎜ | Four Screws |

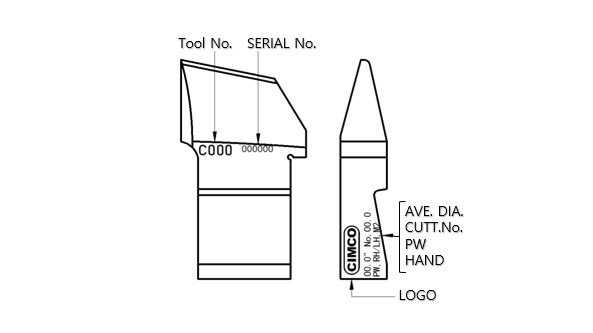

BLADE MARKING:
