ROU.FIN. OLD CUTTER
Old Insert type Roughing & Finishing Cutter
★ ROU.FIN. OLD CUTTER is similar to the Soft Body Alternate Cutter from Gleason.
- Alternate Roughing & Finishing Cutter
Cutter Standard
| No. | AVE.CUTTER DIAMETER |
PROCESSING | HEAD NUMBER |
NUMBER of MASTER |
NUMBER of BLADES |
CUTTING DEPTH |
CLAMPING STYLE |
|---|---|---|---|---|---|---|---|
| 1 | 3.0" | ROU.&FIN. | 30 200 001 | 2 | 8 | 0.375"(9.5㎜) | Center Screw |
| 2 | 3.5" | ROU.&FIN. | 30 200 001 | 2 | 8 | 0.375"(9.5㎜) | Center Screw |
| 3 | 4.5" | ROU.&FIN. | 30 200 002 | 2 | 8 | 0.375"(9.5㎜) | Center Screw |
| 4 | 6.0" | ROU.&FIN. | 30 200 004 | 2 | 14 | 0.375"(9.5㎜) | Four Screws |
| 5 | 7.5" | ROU.&FIN. | 30 200 005 | 2 | 12 | 0.500"(12.7㎜) | Four Screws |
| 6 | 9.0" | ROU.&FIN. | 30 200 007 | 2 | 16 | 0.562"(14.3㎜) | Four Screws |
| 7 | 12.0" | ROU.&FIN. | 30 200 009 | 2 | 20 | 0.765"(19.4㎜) | Four Screws |
| 8 | 14.0" | ROU.&FIN. | 30 200 010 | 2 | 24 | 0.765"(19.4㎜) | Four Screws |
| 9 | 16.0" | ROU.&FIN. | 30 200 012 | 2 | 24 | 0.765"(19.4㎜) | Four Screws |
| 10 | 18.0" | ROU.&FIN. | 30 200 015 | 2 | 24 | 0.765"(19.4㎜) | Four Screws |
| 11 | 18.0" | ROU.&FIN. | 30 200 016 | 2 | 28 | 0.765"(19.4㎜) | Four Screws |

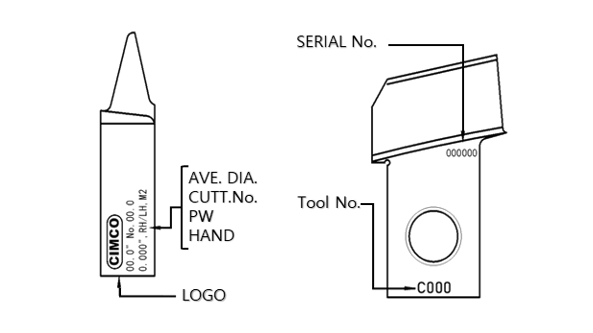

BLADE MARKING:
Information
ROU.FIN. OLD CUTTER
