JCB-MP Series
JCMT BEVEL GEAR
GRINDING MACHINE

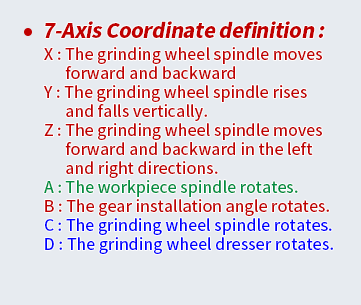

7-axis machine with 6-axis linkage
JCB-MP Series
간단한 설명글 입력
JCMT BEVEL GEAR GRINDING MACHINE
JCB-MP Series
Parameter
| SPECIFICATIONS | JCB20MP | JCB35MP |
|---|---|---|
| CNC System | Siemens 840Dsl | Siemens 840Dsl |
| Max. module (㎜) | 4 | 10 |
| Max. transmission ratio | 10:1 | 10:1 |
| Max. face width (㎜) | 30 | 50 |
| Number of teeth 5~100 | 5~200 | 5~200 |
| Max. diameter of workpiece (㎜) | 200 | 350 |
| Grinding wheel diameter | 2~6 inch | 3.5~9 inch |
| Speed of Grinding wheel (RPM) | 12,000(stepless) | 6000 |
| Workpiece spindle taper | Morse 5# | 1:20 |
| Hole diameter of the larger end (㎜) | Ø70 | Ø100 |
| Workpiece spindle taper hole | 1 : 20 | 1 : 20 |
| Overall dimensions ：L×W×H (㎜) | 4100×2600×2800 | 5000×3600×3500 |
| Total weight (Kg) | 7,000 | 13,000 |
Applicable method & Other options
Information
JCB Line-up
6-axis machine with 5-axis linkage

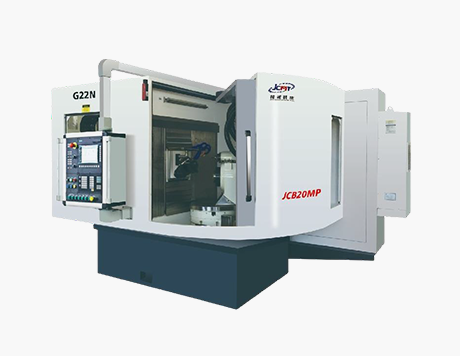

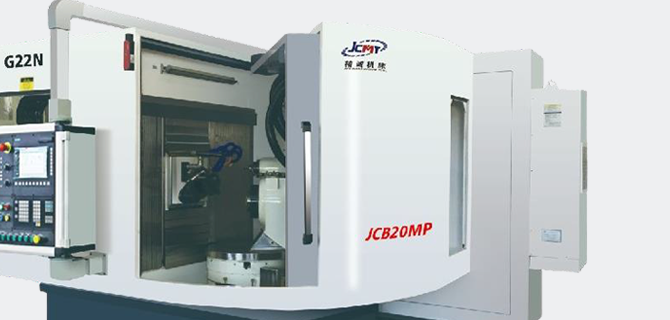

JCB20MP
GENERATOR for MAX.Ø 200㎜
- CNC System Siemens 840Dsl
- Max. module 4 (㎜)
- Number of teeth 5~200
- Max. diameter of workpiece 200 (㎜)
- Grinding wheel diameter 2~6 inch
- Overall dimensions : L4100×W2600×H2800 (㎜)
- Total weight : 7,000 (Kg)
