FIN.SIN.NEW CUTTER
New Insert type Single side Finishing Cutter for Pinion
★ FIN.SIN.NEW CUTTER is similar to the HARC-AC II Single side Finishing Cutter from Gleason.

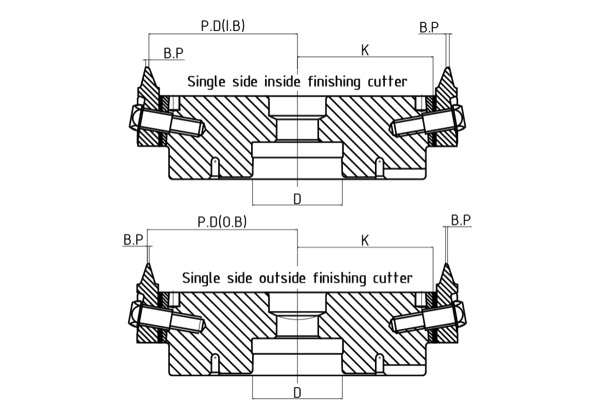

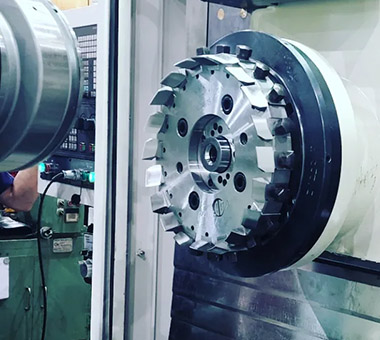

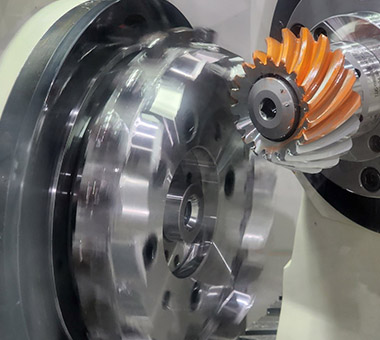

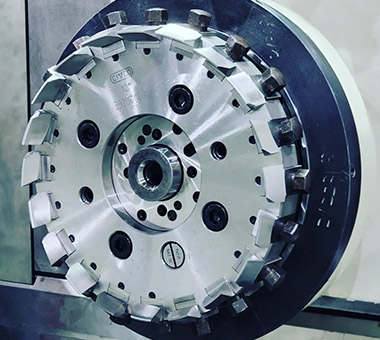

- Single Side Finishing Cutter for Pinion.
- The FIN.SIN.NEW CUTTER offers high efficiency and excellent surface quality in gear cutting operations. Additionally, its structural improvements provide enhanced performance compared to the previous FIN.OLD Sigle side CUTTER.
Cutter Standard
| No. | AVE.CUTTER DIAMETER |
PROCESSING | HEAD NUMBER |
NUMBER of MASTER |
NUMBER of BLADES |
CUTTING DEPTH |
CLAMPING STYLE |
|---|---|---|---|---|---|---|---|
| 1 | 5.0" | Pinion Finishing | 30 232 015 | 1 | 12 | 0.375"(9.6㎜) | Center Screw |
| 2 | 6.0" | Pinion Finishing | 30 232 017 | 1 | 12 | 0.375"(9.6㎜) | Four Screws |
| 3 | 6.0" | Pinion Finishing | 30 232 018 | 1 | 16 | 0.375"(9.6㎜) | Four Screws |
| 4 | 6.0" | Pinion Finishing | 30 232 019 | 1 | 16 | 0.375"(9.6㎜) | Four Screws |
| 5 | 7.5" | Pinion Finishing | 30 232 022 | 1 | 16 | 0.562"(14.3㎜) | Four Screws |
| 6 | 9.0" | Pinion Finishing | 30 232 023 | 1 | 16 | 0.562"(14.3㎜) | Four Screws |
| 7 | 9.0" | Pinion Finishing | 30 232 024 | 1 | 20 | 0.562"(14.3㎜) | Four Screws |
| 8 | 9.0" | Pinion Finishing | 30 232 026 | 1 | 20 | 0.562"(14.3㎜) | Four Screws |

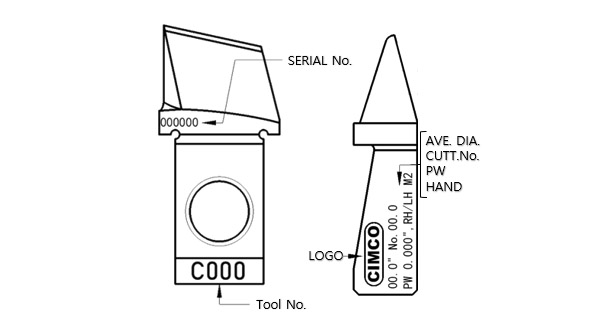

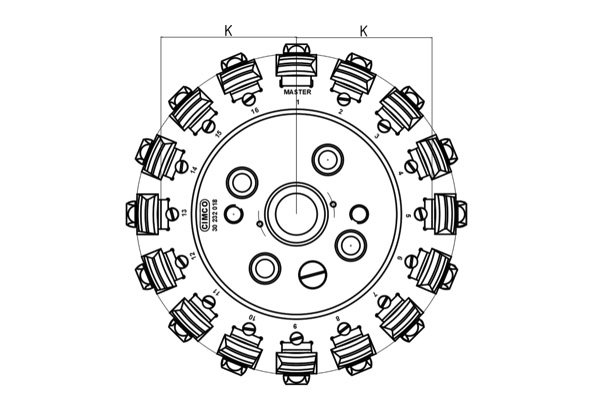

BLADE MARKING:
FIN.SIN.NEW CUTTER
