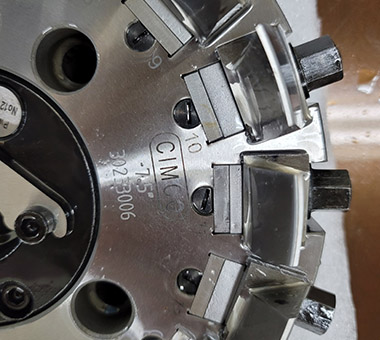

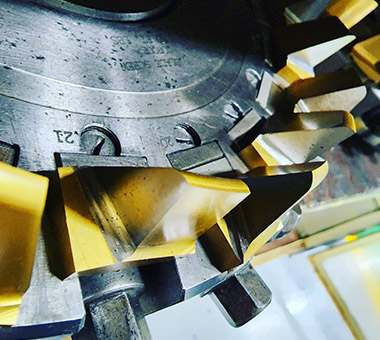

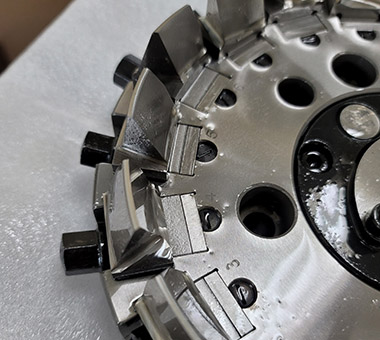

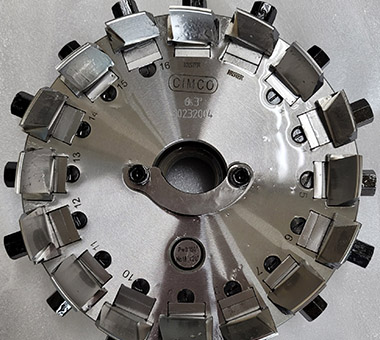

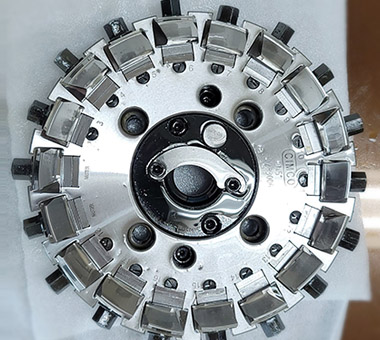

FIN.COM.NEW CUTTER
New Insert type Roughing & Finishing Cutter
★ FIN.COM.NEW CUTTER is similar to the HARD-AC III Completing Cutter from Gleason.
- Alternate roughing & Finishing Cutter
- The FIN.COM.NEW CUTTER offers high efficiency and excellent Surface Roughness quality in gear cutting operations. Additionally, its structural improvements provide enhanced performance compared to the previous ROU.FIN. OLD CUTTER.

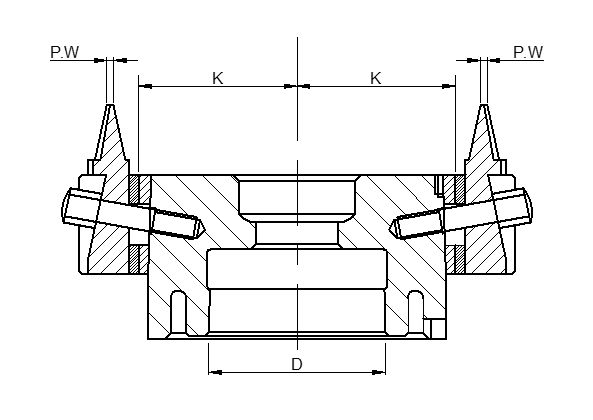

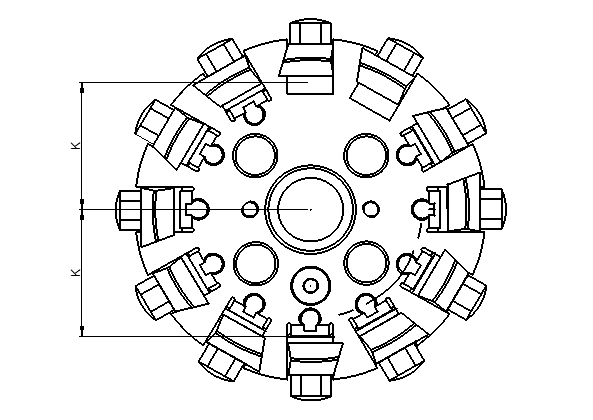

Cutter Standard
| No. | AVE.CUTTER DIAMETER |
PROCESSING | HEAD NUMBER |
NUMBER of MASTER |
NUMBER of BLADES |
CUTTING DEPTH |
CLAMPING STYLE |
|---|---|---|---|---|---|---|---|
| 1 | 5.0" | Completing | 30 233 002 | 2 | 12 | 0.400"(10.2㎜) | Center Screw |
| 2 | 6.0" | Completing | 30 233 004 | 2 | 14 | 0.500"(12.7㎜) | Four Screws |
| 3 | 7.5" | Completing | 30 233 006 | 2 | 18 | 0.600"(15.3㎜) | Four Screws |
| 4 | 9.0" | Completing | 30 233 008 | 2 | 22 | 0.700"(17.8㎜) | Four Screws |
| 5 | 10.5" | Completing | 30 233 010 | 2 | 26 | 0.800"(20.4㎜) | Four Screws |
| 6 | 12.0" | Completing | 30 233 012 | 2 | 30 | 0.800"(20.4㎜) | Four Screws |
| 7 | 14.0" | Completing | 30 233 014 | 2 | 32 | 0.900"(22.9㎜) | Four Screws |
| 8 | 16.0" | Completing | 30 233 015 | 2 | 36 | 0.900"(22.9㎜) | Four Screws |

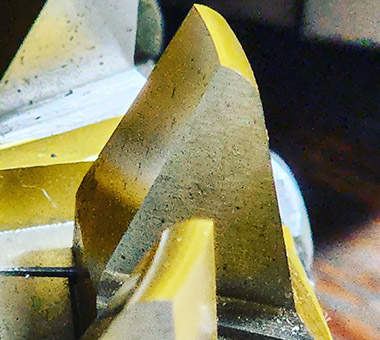

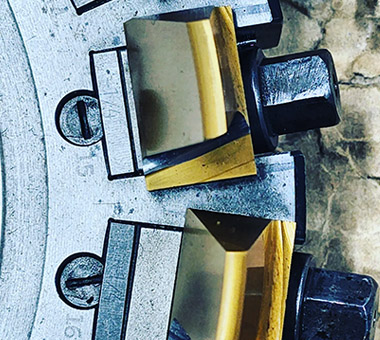

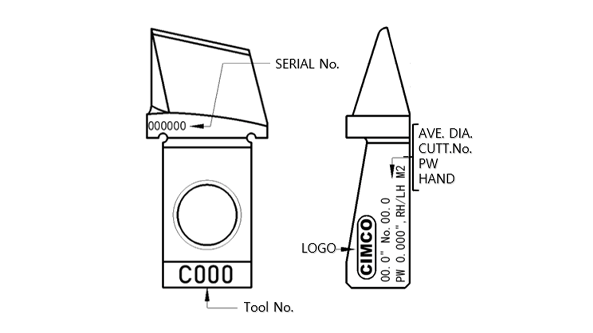

BLADE MARKING:
FIN.COM.NEW CUTTER
