FIN. OLD CUTTER
Old Insert type Pinion Finishing Cutter

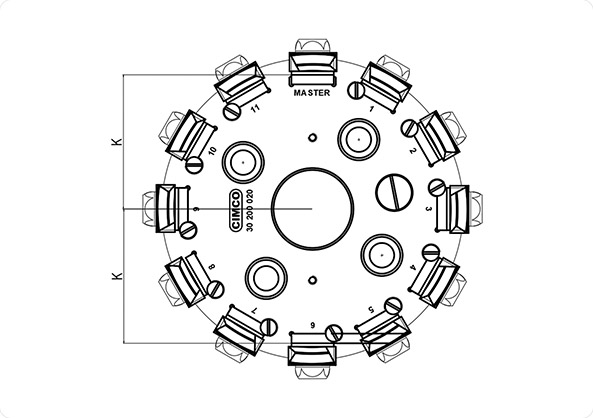

★ FIN. The OLD CUTTER is similar to the Soft Body Single-side Cutter from Gleason.
- Single side Finishing Cutter
Cutter Standard
| No. | AVE.CUTTER DIAMETER |
PROCESSING | HEAD NUMBER |
NUMBER of MASTER |
NUMBER of BLADES |
CUTTING DEPTH |
CLAMPING STYLE |
|---|---|---|---|---|---|---|---|
| 1 | 3.5" | Pinion Finishing | 30 200 018 | 1 | 8 | 0.375"(9.5㎜) | Center Screw |
| 2 | 4.5" | Pinion Finishing | 30 200 019 | 1 | 8 | 0.375"(9.5㎜) | Center Screw |
| 3 | 6.0" | Pinion Finishing | 30 200 020 | 1 | 12 | 0.375"(9.5㎜) | Four Screws |
| 4 | 7.5" | Pinion Finishing | 30 200 024 | 1 | 12 | 0.500"(12.7㎜) | Four Screws |
| 5 | 9.0" | Pinion Finishing | 30 200 028 | 1 | 16 | 0.562"(14.3㎜) | Four Screws |
| 6 | 12.0" | Pinion Finishing | 30 200 033 | 1 | 20 | 0.765"(19.4㎜) | Four Screws |
| 7 | 14.0" | Pinion Finishing | 30 200 036 | 1 | 24 | 0.765"(19.4㎜) | Four Screws |
| 8 | 15.0" | Pinion Finishing | 30 200 037 | 1 | 24 | 0.765"(19.4㎜) | Four Screws |
| 9 | 18.0" | Pinion Finishing | 30 200 040 | 1 | 28 | 0.765"(19.4㎜) | Four Screws |

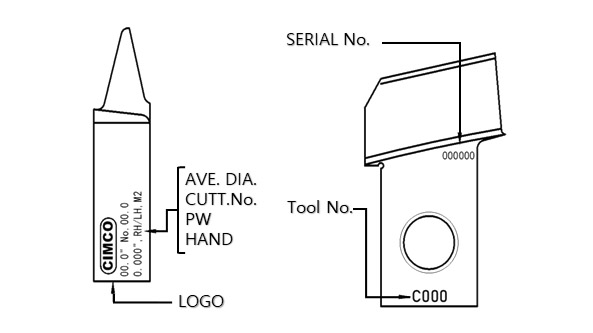

BLADE MARKING:
FIN. OLD CUTTER
Information
