YH9- Series
JCMT CNC BEVEL GEAR
LAPPING MACHINE
5-axis machine with 3-axis linkage
YH9- Series
간단한 설명글 입력

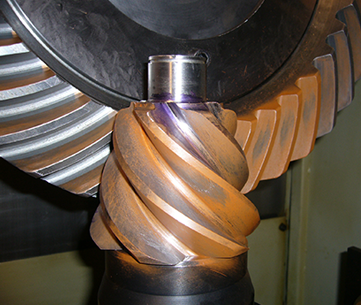

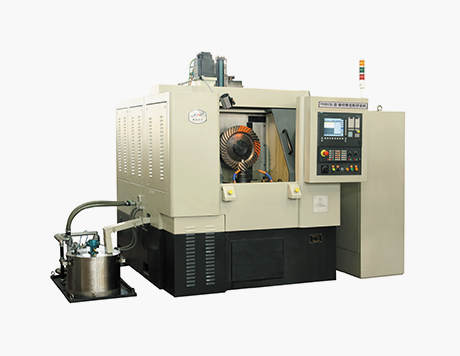

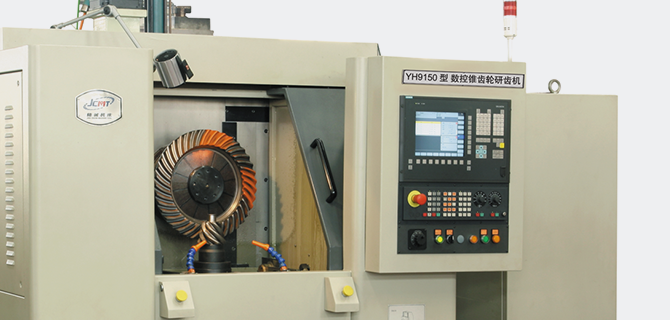

YH9150 CNC BEVEL GEAR LAPPING MACHINE
YH9- Series
YH9150 CNC BEVEL GEAR LAPPING MACHINE
5-axis machine with 3-axis linkage
Parameter
| SPECIFICATIONS | YH9150 | YH9460 | ||
|---|---|---|---|---|
| CNC System | Siemens 840Dsl | Siemens 840Dsl | ||
| Max. diameter of workpiece (㎜) | Gear Pinion |
500 250 |
600 260 |
|
| Y : Pinion spindle nose to gear axis (㎜) | 2~6 inch | 3.5~9 inch | ||
| Z : Gear spindle nose to pinion axis (㎜) | 12,000(stepless) | 6000 | ||
| X : Offset (㎜) | Morse 5# | 1:20 | ||
| Brake load (Nm) | Ø70 | Ø100 | ||
| Speed of pinion spindle (r/min) | 1 : 20 | 1 : 20 | ||
| Spindle taper hold |
Hole diameter of the large end(㎜) |
Pinion Gear |
100 60 |
153 100 |
| Taper | Pinion Gear |
1:20 1:20 |
1:20 1:20 |
|
| Depth of taper hole (㎜) |
Pinion Gear |
150 80 |
180 160 |
|
| Diameter of through Workpiece Spindle hole (㎜) |
Pinion Gear |
63 50 |
58 58 |
|
| Overall dimensions : L×W×H (㎜) | 1900×1680×2240 | 2500×2700×2400 | ||
| Net weight (kg) | 6,000 | 8,000 | ||
YH9 Line-up
5-axis machine with 3-axis linkage

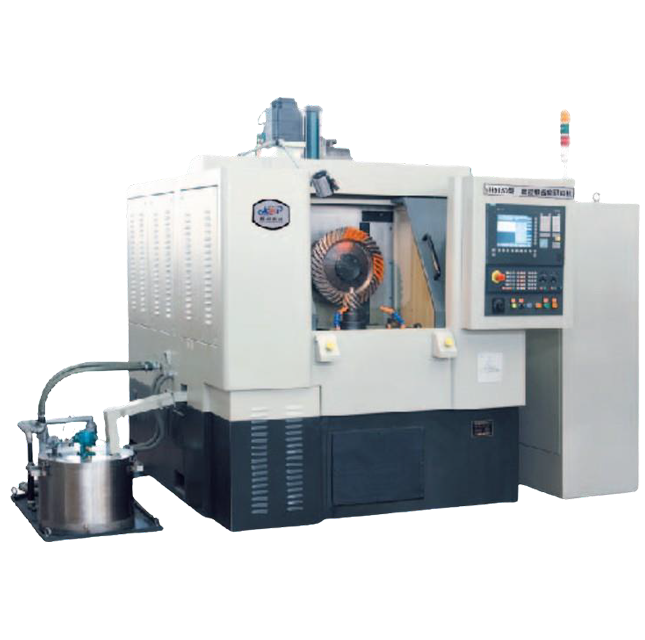

YH9150
CNC BEVEL GEAR LAPPING MACHINE
- CNC System Siemens 840Dsl
- Y : Pinion spindle nose to gear axis (㎜) 2~6 inch
- Z : Gear spindle nose to pinion axis (㎜) 12,000(stepless)
- X : Offset (㎜) Morse 5#
- Speed of pinion spindle (r/min) 1 : 20
- Overall dimensions : L1900×W1680×H2240 (㎜)
- Net weight : 6,000 (Kg)
