FIN.NEW CUTTER
New Insert type Finishing Cutter for Pinion
★ FIN.NEW CUTTER is similar to the HARD-AC II Finishing Cutter from Gleason.
- Alternate Finishing Cutter
- The FIN.NEW CUTTER offers high efficiency and excellent Surface Roughness quality in gear cutting operations. Additionally, its structural improvements provide enhanced performance compared to the previous FIN. OLD CUTTER.

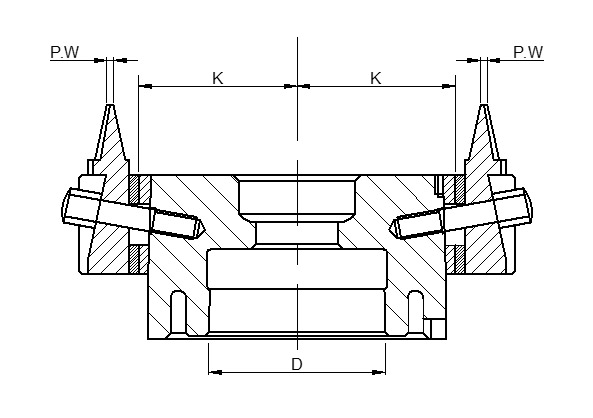

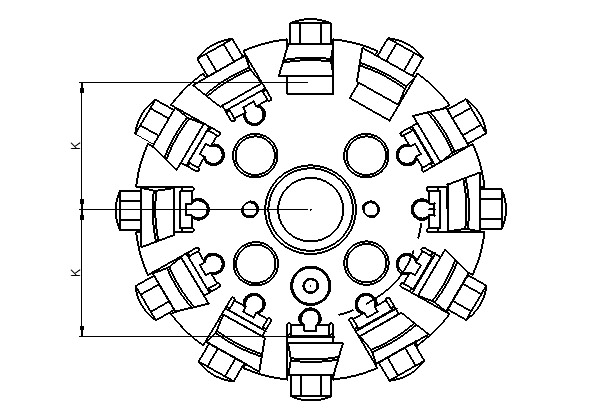

Cutter Standard
| No. | AVE.CUTTER DIAMETER |
PROCESSING | HEAD NUMBER |
NUMBER of MASTER |
NUMBER of BLADES |
CUTTING DEPTH |
CLAMPING STYLE |
|---|---|---|---|---|---|---|---|
| 1 | 5.0" | Finishing | 30 212 001 | 2 | 12 | 0.375"(9.6㎜) | Center Screw |
| 2 | 6.0" | Finishing | 30 212 002 | 2 | 12 | 0.375"(9.6㎜) | Four Screws |
| 3 | 6.0" | Finishing | 30 212 003 | 2 | 16 | 0.375"(9.6㎜) | Four Screws |
| 4 | 6.0" | Finishing | 30 212 004 | 2 | 16 | 0.375"(9.6㎜) | Four Screws |
| 5 | 7.5" | Finishing | 30 212 005 | 2 | 16 | 0.500"(12.7㎜) | Four Screws |
| 6 | 9.0" | Finishing | 30 212 006 | 2 | 12 | 0.562"(14.3㎜) | Four Screws |
| 7 | 9.0" | Finishing | 30 212 007 | 2 | 20 | 0.562"(14.3㎜) | Four Screws |
| 8 | 9.0" | Finishing | 30 212 008 | 2 | 20 | 0.562"(14.3㎜) | Four Screws |
| 9 | 12.0" | Finishing | 30 212 009 | 2 | 12 | 0.765"(19.5㎜) | Four Screws |

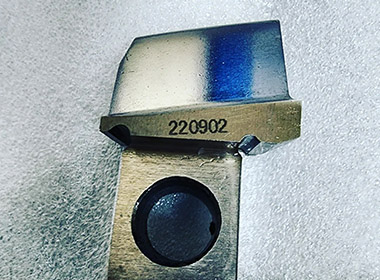

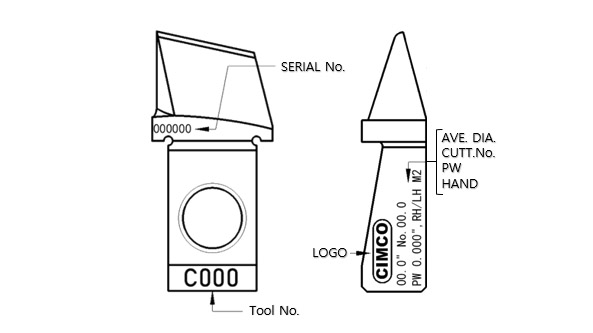

BLADE MARKING:
FIN.NEW CUTTER
Information
