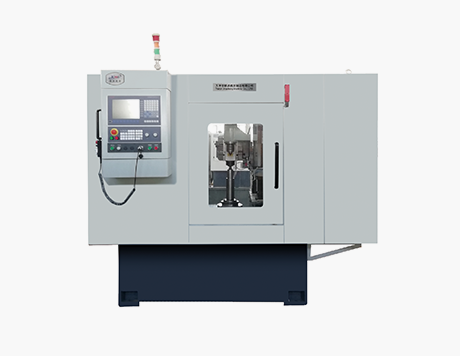

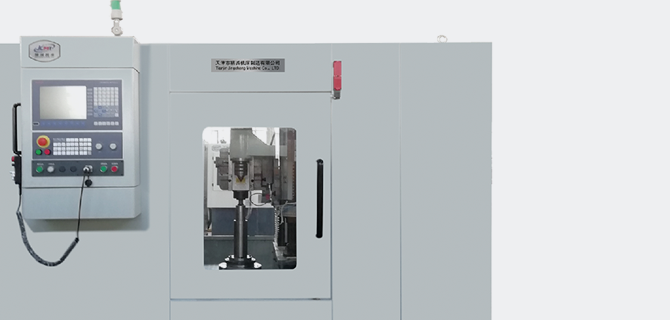

YHZ9330A
JCMT BEVEL GEAR
CUTTER SHARPENER
11-axis machine with 5-axis linkage
YHZ9330A
간단한 설명글 입력
JCMT BEVEL GEAR CUTTER SHARPENER
YHZ9330A
JCMT BEVEL GEAR CUTTER SHARPENER

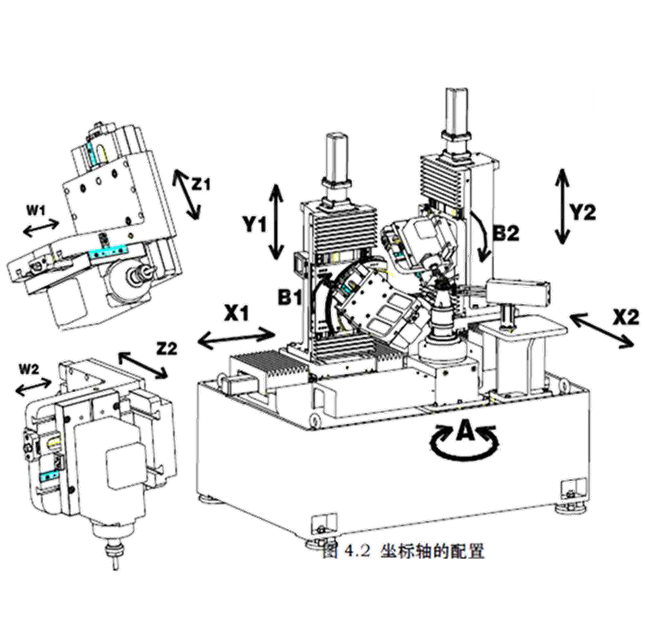

11-axis machine with 5-axis linkage
Parameter
| SPECIFICATIONS | YHZ9330A | |
|---|---|---|
| CNC System | Siemens 828Dsl | |
| Max.diameter | 300 mm | |
| Min.diameter | 50 mm | |
| Processing range： | Sharp edge of large end and small end |
|
| Workpiece spindle |
1) Diameter of spindle straight hole 2) Depth of spindle straight hole |
Φ90 mm 15 mm |
| Motorized spindle |
1) Max. diameter of cutter holder 2) Power of motorized spindle 3) Speed of motorized spindle |
Φ16 mm 1.1 KW 6000r/min |
| Drive spindle torque |
1) X1，X2 —servo motor of horizontal movement 2) Y1，Y2 —servo motor of vertical movement 3) A— torque motor of workpiece spindle indexing |
8 Nm 8 Nm 12 Nm |
| Overall dimensions : L×W×H (㎜) | 2300×1650×2350 mm | |
| Weight about | 3,000 kg | |
Information
YHZ9330A Line-up
11-axis machine with 5-axis linkage
YHZ9330A
JCMT BEVEL GEAR CUTTER SHARPENER
- CNC System Siemens 828Dsl
- Max.diameter 300 mm
- Min.diameter 50 mm
- Processing range： Sharp edge of large end and small end
- Overall dimensions : L2300×W1650×H2350 (㎜)
- Weight about : 3,000 (Kg)
