YH94- Series

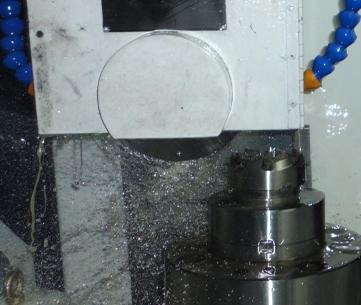

JCMT BEVEL GEAR CUTTER SHARPENER
6-axis machine with 4-axis linkage
YH94- Series
간단한 설명글 입력
JCMT BEVEL GEAR CUTTER SHARPENER
YH94- Series
JCMT BEVEL GEAR CUTTER SHARPENER
6-axis machine with 4-axis linkage
Parameter
| SPECIFICATIONS | YH9420 | YH9460 |
|---|---|---|
| CNC System | Siemens 828Dsl | Siemens 828Dsl |
| Diameter of cutter | 1.1″～12″ | 6.0″～24″ |
| Material of grinding wheel | CBN | CBN |
| Diameter of grinding wheel (㎜) | 180 | 300 |
| Speed of grinding wheel (rpm) | 1800～5000 | 1800～5000 |
| Diameter of indexing rotary table (㎜) | Φ200 | Φ450 |
| Mounting diameter of cutter spindle (㎜) |
Φ25.4×1/12 Φ58.221×1/24 Φ126.966×1/24 |
Φ58.221×1/12 Φ126.966×1/24 Φ215.8 |
| A Obliquity of worktable | -90° ~ 40° | 8 Nm 8 Nm 12 Nm |
| Power of motor (KW) | 2.2 | 3.7 |
| Dimension (L×W×H) (㎜) | 2070×2300×2100 | 2000×2650×3000 |
| Weight (Kg) | 4,000 | 4,000 |
YH94- Line-up
6-axis machine with 4-axis linkage

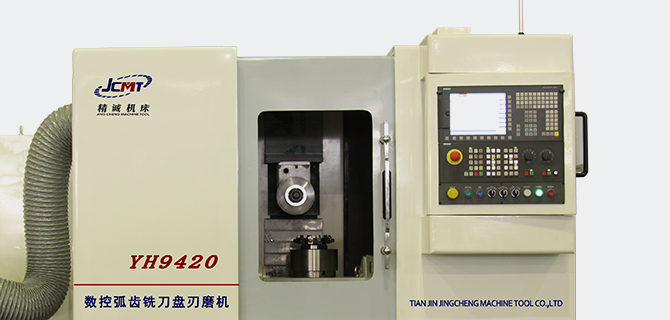

YH9420
JCMT BEVEL GEAR CUTTER SHARPENER
- CNC System Siemens 828Dsl
- Diameter of cutter 1.1″～12″
- Diameter of grinding wheel 180(㎜)
- Speed of grinding wheel (rpm) 1800～5000
- Power of motor 2.2 (KW)
- Dimension : L2070×W2300×H2100 (㎜)
- Weight : 4,000 (Kg)

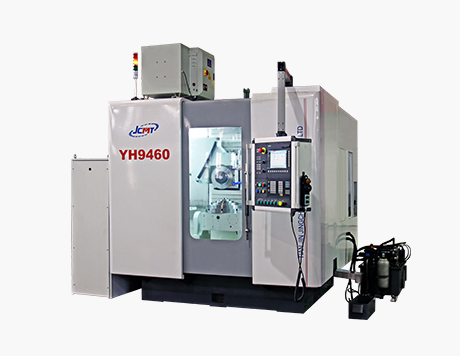

YH9460
JCMT BEVEL GEAR CUTTER SHARPENER
- CNC System Siemens 828Dsl
- Diameter of cutter 6.0″～24″
- Diameter of grinding wheel 300(㎜)
- Speed of grinding wheel (rpm) 1800～5000
- Power of motor 3.7 (KW)
- Dimension : L2000×W2650×H3000 (㎜)
- Weight : 4,000 (Kg)
