Gleason-style Soft Body series cutter and Hard-ac series cutter
-
Application method
-

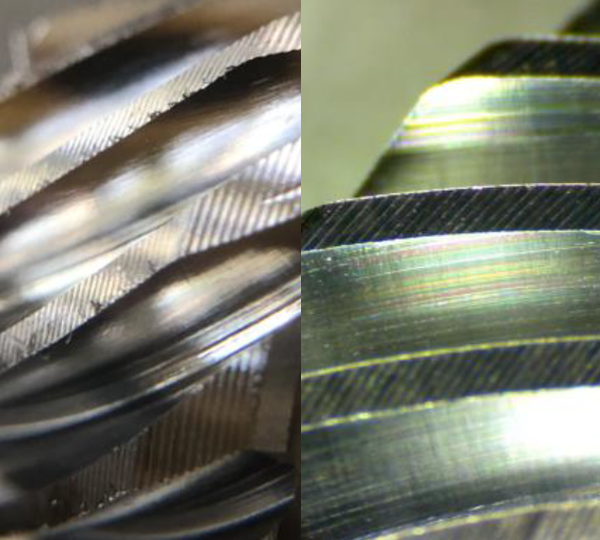

Spiral bevel Gear
◆ Completing Method (G-mode & Free-mode)
◆ Generating Method (G-mode or GG-mode)-
Cutter :
-
1) Wet Cutting : Gleason-style Hard-ac cutter
-
2) Dry Cutting : Special carbide cutter
-
-
-
Stright bevel Gear
◆ Up-Low Position Method (Free-mode)-
Cutter :
-
1) Wet Cutting : Special cutter resembling Greason Coniflex style
-
-
-
JCBA Series

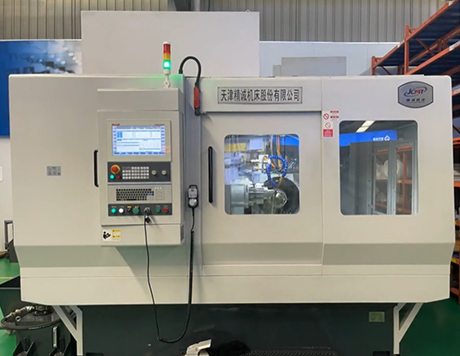

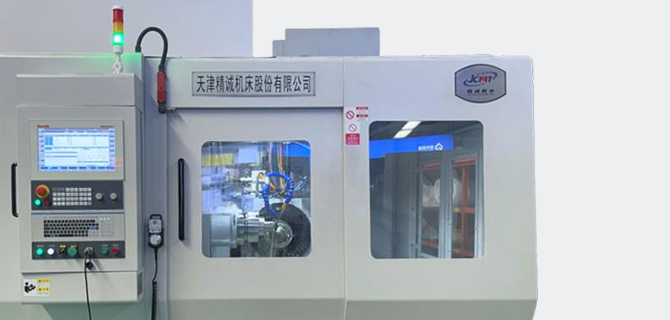

JCMT BEVEL GEAR GENERATOR
6-axis machine with 6-axis linkage
JCBA Series
간단한 설명글 입력
JCB-A series (Oil cutting & Dry cutting)
- Generating time per tooth: 2 sec. (Dry cutting)
- Class 5 (GB, ISO, DIN) , JIS class 1
JCB-A series
고정밀 치형가공을 위해
루트 축을 제외한 5축은
모두 CNC 시스템에 의해 제어됩니다.
Feature Summary
-
6-axis(CNC interlocking 6-axis) 840D Twin Spindle
-
Torque motor mounted on cutter spindle.
-
The workpiece spindle is driven by a direct connection to the torque motor.
-
B axis (ROOT axis) is controlled by CNC
-
Achieve closed-loop control — Cutter spindle & Workpiece spindle & B축(ROOT축)
-
Achieve tilt function—completing method
-
Z-axis (Sliding base): Three L/N guides adopted
-
Spiral bevel gear, Hypoide Gear, Zerol Gear, Worm spiral gear, Straight bevel gear
Information
Parameter
| SPECIFICATIONS | JCB12b | JCB20a | JCB32a | JCB40a |
|---|---|---|---|---|
| CNC System | Bosch Rexroth MTX micro control 2 Independent CNC Controls |
Siemens 840Dsl | Siemens 840Dsl | Siemens 840Dsl |
| Max. module (㎜) | 2.5 | 4 | 6 | 10 |
| Max. transmission ratio | 10:01 | 01:10 | 01:10 | 01:10 |
| Max. face width (㎜) | 20 | 30 | 50 | 58 |
| Number of teeth | 5~200 | 5~200 | 5~200 | 5~200 |
| Max. diameter of workpiece (㎜) | 125 | 200 | 320 | 400 |
| Cutter diameter | 1.5~3.5 inch | 1.5~6 inch | 2.5~7.5 inch | 5~12 inch |
| Cutter spindle speed (RPM) | 100~1000 | 500~1500 | 200~1200 | 200~950 |
| Workpiece spindle taper | Morse 5# | Morse 5# | 1:20 | 1:20 |
| Hole diameter of the larger end (㎜) | 31.267 | 44.399 | 70 | 100 |
| Workpiece spindle speed (r/min) | 0-30 | 600 | 300 | 300 |
| Overall dimensions: L×W×H (㎜) | 2400×2300×2100 | 3300×3700×2300 | 4400×2500×2600 | 4685×2800×2600 |
| Total weight (Kg) | 3,000 | 6,500 | 6,700 | 10,000 |

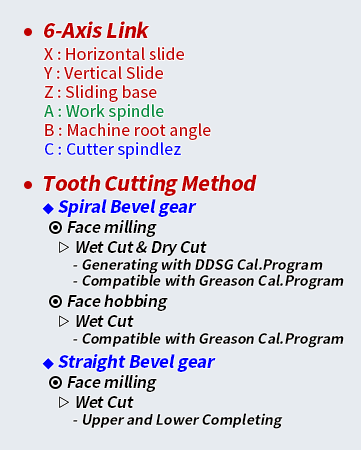

Applicable cutter type & Tooth cutting Method
JCBA Line-up
6-axis machine with 6-axis linkage

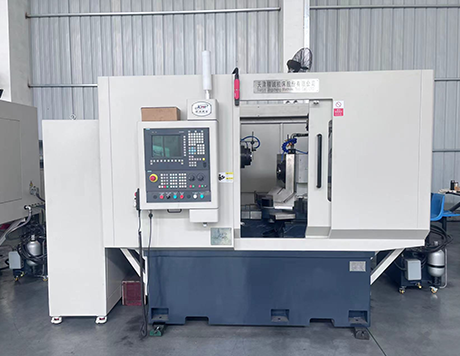

JCB20A
GENERATOR for MAX.Ø 200㎜
- CNC System Siemens 840Dsl
- Max. module 4 (㎜)
- Number of teeth 5~200
- Max. diameter of workpiece 200 (㎜)
- Cutter diameter 1.5~6 inch
- Overall dimensions : L3300×W3700×H2300 (㎜)
- Total weight : 6,500 (Kg)
JCB40A
GENERATOR for MAX.Ø 200㎜
- CNC System Siemens 840Dsl
- Max. module 10 (㎜)
- Number of teeth 5~200
- Max. diameter of workpiece 400 (㎜)
- Cutter diameter 5~12 inch
- Overall dimensions : L4685×W2800×H2600 (㎜)
- Total weight : 10,000 (Kg)
