YH90- Series

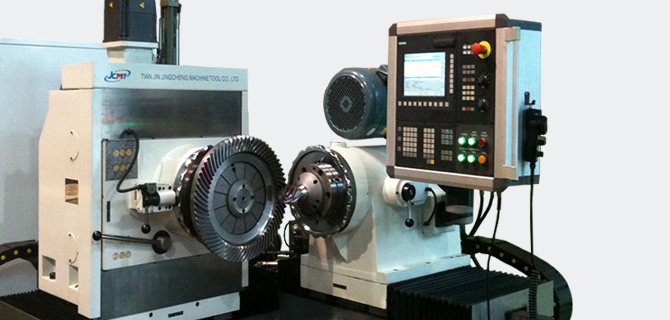

JCMT Bevel gear Contact tester
6-axis machine with 6-axis linkage
YH90- Series
간단한 설명글 입력
JCMT Bevel gear Contact tester
Parameter
| SPECIFICATIONS | YH903B | YH9035 | YH9060A | YHW9060A | YH90100 | YHW90160 | YH90250 | YH90300 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Max.diameter (㎜) | 200 | 350 | 600 | 600 | 1000 | 1600 | 2500 | 3000 | ||
| Angle between two spindle | 40º-180º | 90º | 90º | 40º-110º | 90º | 45º-110º | 90º | 90º | ||
| Max. offset (㎜) | ±20 | ±75 | ±80 | ±75 | ±0 | ±150 | ±0 | ±150 | ||
| Spindle hole |
Taper of the spindle |
Pinion Gear |
Morse4# Morse4# |
1 : 20 1 : 20 |
1 : 20 1 : 20 |
1 : 20 1 : 20 |
/ 1 : 20 |
Round hole Round hole |
Round hole Round hole |
Round hole Round hole |
| Hole diameter of the larger end (㎜) |
Pinion Gear |
31.267 31.267 |
70 70 |
153 153 |
153 153 |
230 153 |
225 225 |
350 250 |
450 250 |
|
| Diameter of through workpiece spindle hole (㎜) |
Pinion Gear |
20 20 |
60 60 |
90 90 |
90 90 |
180 130 |
180 180 |
250 180 |
450 250 |
|
| Speed of driving spindle (r/min) | 0-1000 | 0-2000 | 0-2000 | 700-2000 | 0-500 | 165/330 | 0.5-10 | 0.5-10 | ||
| Overall dimensions : L×W×H (㎜) | 950×820×1230 | 1650×1800×1760 | 1880×2000×1995 | 1800×2100×1995 | 2600×2900×2500 | 3642×3770×2153 | 3687×3552×1685 | 4500×3500×4500 | ||
| Total weight (Kg) | 960 | 4,500 | 6,000 | 6,000 | 11,000 | 12,000 | 19,000 | 30,000 | ||
YH90 Line-up
6-axis machine with 6-axis linkage

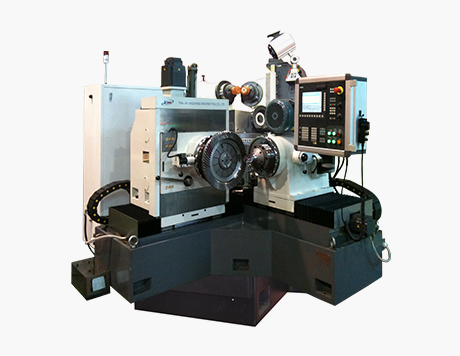

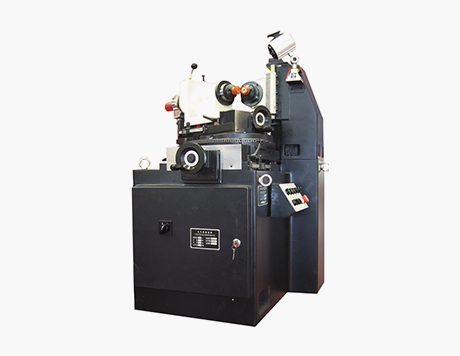

YH903B
Contec Tester Machine
- Max.diameter 200 (㎜)
- Angle between two spindle : 40º-180º
- Max. offset ±20 (㎜)
- Speed of driving spindle (r/min) : 0-1000
- Dimension : L950×W820×H1230 (㎜)
- Weight : 960 (Kg)

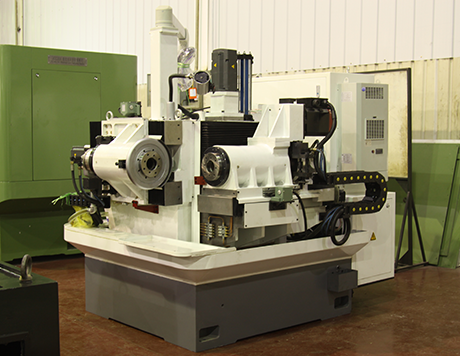

YH9035
Contec Tester Machine
- Max.diameter 350 (㎜)
- Angle between two spindle : 90º
- Max. offset ±75 (㎜)
- Speed of driving spindle (r/min) : 0-2000
- Dimension : L1650×W1800×H1760 (㎜)
- Weight : 4,500 (Kg)
YH9060A
Contec Tester Machine
- Max.diameter 600 (㎜)
- Angle between two spindle : 90º
- Max. offset ±80 (㎜)
- Speed of driving spindle (r/min) : 0-2000
- Dimension : L1880×W2000×H1995 (㎜)
- Weight : 6,000 (Kg)

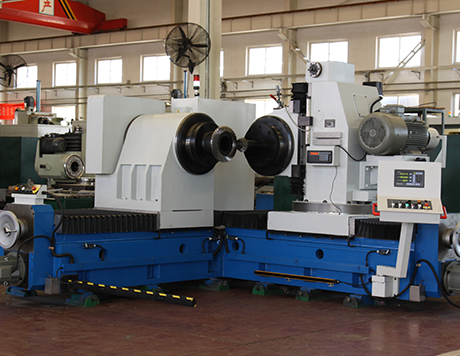

YH90160
Contec Tester Machine
- Max.diameter 1600 (㎜)
- Angle between two spindle : 45º-110º
- Max. offset ±150 (㎜)
- Speed of driving spindle (r/min) : 165/330
- Dimension : L3642×W3770×H2153 (㎜)
- Weight : 12,000 (Kg)

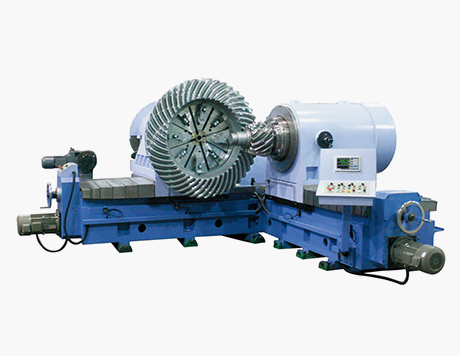

YH90250
Contec Tester Machine
- Max.diameter 2500 (㎜)
- Angle between two spindle : 90º
- Max. offset ±0 (㎜)
- Speed of driving spindle (r/min) : 0.5-10
- Dimension : L3687×W3552×H1685 (㎜)
- Weight : 19,000 (Kg)
