ROU.NEW CUTTER
New Insert type Roughing Cutter for Pinion
★ ROU.NEW CUTTER is similar to the RIDG-AC Roughing Cutter from Gleason.
- An inserted-blade HSS face milling cutter designed for high volume pinion and gear roughing operations.

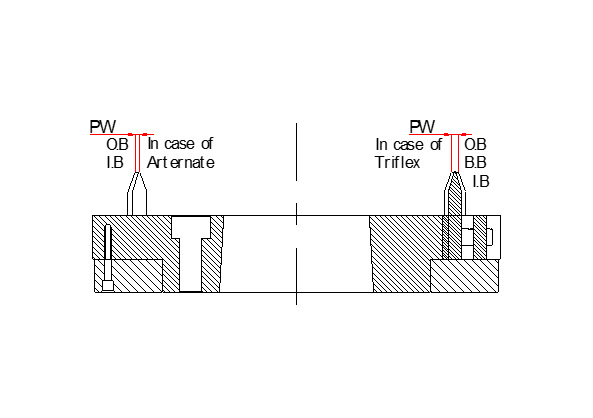

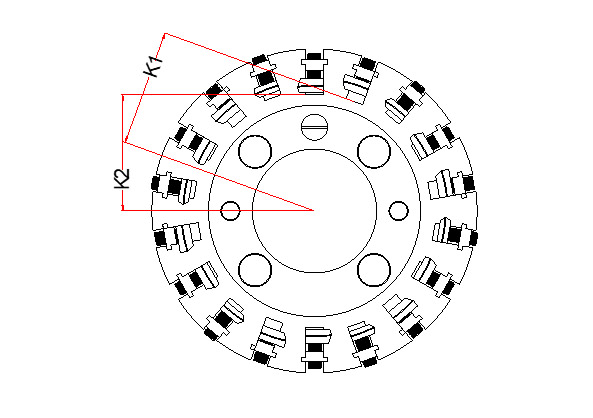

Cutter Standard
| No. | AVE.CUTTER DIAMETER |
PROCESSING | HEAD NUMBER |
NUMBER of | CUTTING DEPTH |
CLAMPING STYLE |
|||
|---|---|---|---|---|---|---|---|---|---|
| BB | OB | IB | BLADES | ||||||
| 1 | 6.0" | Roughing | 30 207 007 | 10 | 5 | 5 | 20 | 0.500"(12.7㎜) | Four Screws |
| 2 | 7.5" | Roughing | 30 207 009 | 12 | 6 | 6 | 24 | 0.500"(12.7㎜) | Four Screws |
| 3 | 9.0" | Roughing | 30 207 010 | 14 | 7 | 7 | 28 | 0.562"(14.3㎜) | Four Screws |
| 4 | 12.0" | Roughing | 30 207 011 | 18 | 9 | 9 | 36 | 0.765"(19.5㎜) | Four Screws |
| 5 | 16.0" | Roughing | 30 207 013 | 20 | 10 | 10 | 40 | 1.000"(25.4㎜) | Four Screws |
| No. | AVE.CUTTER DIAMETER |
PROCESSING | HEAD NUMBER |
NUMBER of | CUTTING DEPTH |
CLAMPING STYLE |
||
|---|---|---|---|---|---|---|---|---|
| OB | IB | BLADES | ||||||
| 1 | 6.0" | Roughing | 30 207 007 | 10 | 10 | 20 | 0.500"(12.7㎜) | Four Screws |
| 2 | 7.5" | Roughing | 30 207 009 | 12 | 12 | 24 | 0.500"(12.7㎜) | Four Screws |
| 3 | 9.0" | Roughing | 30 207 010 | 14 | 14 | 28 | 0.562"(14.3㎜) | Four Screws |
| 4 | 12.0" | Roughing | 30 207 011 | 18 | 18 | 36 | 0.765"(19.5㎜) | Four Screws |
| 5 | 16.0" | Roughing | 30 207 013 | 20 | 20 | 40 | 1.000"(25.4㎜) | Four Screws |

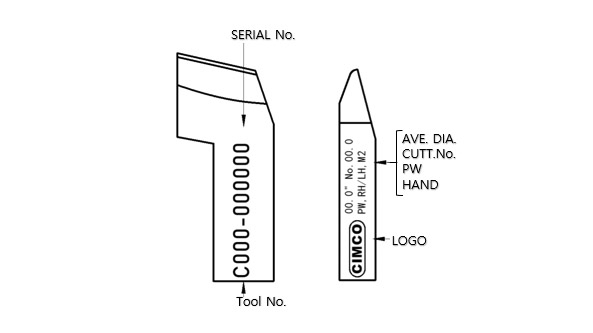

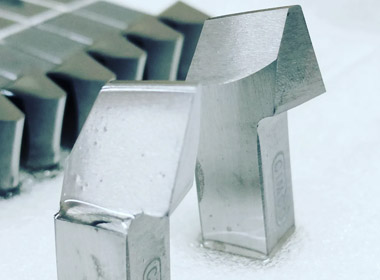

BLADE MARKING:
FIN.ROU CUTTER
